HFM-1型单级耐腐耐磨后吸式压滤机泵-江苏华强泵业有限公司

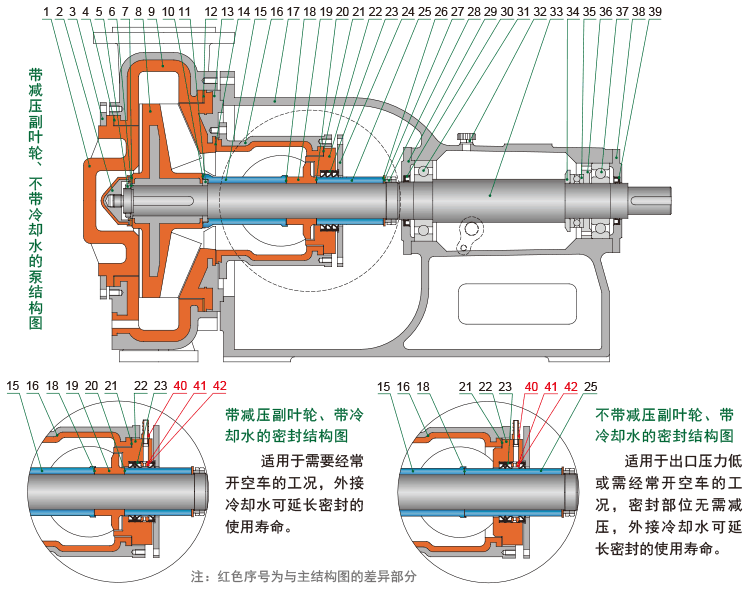

结构示意图

性能参数表

　　HFM-I型单级泵的性能参数表

序号	规格	参考型号	流量 (m3/h)	扬程 (m)	配备电机	转速 (r/min)	重量 (kg)	进口×出口直径(mm)
1	50HFM-I	50HFM-I-5-10	5	10	0.75kW-4	1450	160	50×40
2		50HFM-I-5-25	5	25	1.5kW-2	2900	160
3		50HFM-I-5-30	5	30	2.2kW-2	2900	170
4		50HFM-I-5-35	5	35	3kW-2	2900	180
5		50HFM-I-5-40	5	40	4kW-2	2900	200
6		50HFM-I-7.5-10	7.5	10	0.75kW-4	1450	160
7		50HFM-I-10-10	10	10	1.1kW-4	1450	162
8		50HFM-I-10-25	10	25	3kW-2	2900	180
9		50HFM-I-10-30	10	30	4kW-2	2900	200
10		50HFM-I-10-35	10	35	5.5kW-2	2900	220
11		50HFM-I-10-40	10	40	7.5kW-2	2900	245
12		50HFM-I-15-25	15	25	3kW-2	2900	180
13		50HFM-I-15-30	15	30	4kW-2	2900	200
14		50HFM-I-15-35	15	35	5.5kW-2	2900	220
15		50HFM-I-15-40	15	40	7.5kW-2	2900	245
16		50HFM-I-20-25	20	25	4kW-2	2900	200
17		50HFM-I-20-30	20	30	5.5kW-2	2900	220
18		50HFM-I-20-35	20	35	7.5kW-2	2900	245
19		50HFM-I-20-40	20	40	7.5kW-2	2900	245
20	65HFM-I	65HFM-I-10-40	10	40	5.5kW-2	2900	320	65×50
21		65HFM-I-10-50	10	50	5.5kW-2	2900	320
22		65HFM-I-20-35	20	35	7.5kW-2	2900	320
23		65HFM-I-20-40	20	40	7.5kW-2	2900	320
24		65HFM-I-20-50	20	50	11kW-2	2900	360
25		65HFM-I-30-35	30	35	11kW-2	2900	360
26		65HFM-I-30-40	30	40	11kW-2	2900	360
27		65HFM-I-30-50	30	50	15kW-2	2900	370
28	65HFM-I-H	65HFM-I-H-5-15	5	15	1.1kW-4	1450	220	65×50
29		65HFM-I-H-5-17.5	5	17.5	1.1kW-4	1450	220
30		65HFM-I-H-10-15	10	15	2.2kW-4	1450	280
31		65HFM-I-H-10-17.5	10	17.5	2.2kW-4	1450	280
32		65HFM-I-H-10-60	10	60	11kW-2	2900	360
33		65HFM-I-H-10-70	10	70	15kW-2	2900	370
34		65HFM-I-H-15-15	15	15	3kW-4	1450	250
35		65HFM-I-H-15-17.5	15	17.5	3kW-4	1450	250
36		65HFM-I-H-15-80	15	80	15kW-2	2900	370
37		65HFM-I-H-20-60	20	60	15kW-2	2900	370
38		65HFM-I-H-20-70	20	70	15kW-2	2900	370
39		65HFM-I-H-30-60	30	60	18.5kW-2	2900	400
40		65HFM-I-H-30-70	30	70	22kW-2	2900	440
41	65HFM-I-H2	65HFM-I-H2-20-75	20	75	15kW-2	2900	400	65×50
42		65HFM-I-H2-25-73	25	73	15kW-2	2900	400
43		65HFM-I-H2-30-28	30	28	7.5kW-4	1450	400
44		65HFM-I-H2-30-70	30	70	18.5kW-2	2900	400
45		65HFM-I-H2-35-26	35	26	7.5kW-4	1450	400
46		65HFM-I-H2-35-70	35	70	22kW-2	2900	400
47	80HFM-I	80HFM-I-20-15	20	15	3kW-4	1450	250	80×65
48		80HFM-I-25-15	25	15	3kW-4	1450	250
49		80HFM-I-25-17.5	25	17.5	4kW-4	1450	280
50		80HFM-I-30-35	30	35	7.5kW-2	2900	320
51		80HFM-I-30-40	30	40	11kW-2	2900	360
52		80HFM-I-30-50	30	50	15kW-2	2900	370
53		80HFM-I-40-35	40	35	11kW-2	2900	360
54		80HFM-I-40-40	40	40	15kW-2	2900	370
55		80HFM-I-40-50	40	50	18.5kW-2	2900	400
56		80HFM-I-45-35	45	35	11kW-2	2900	360
57		80HFM-I-45-40	45	40	15kW-2	2900	370
58		80HFM-I-45-50	45	50	18.5kW-2	2900	400
59		80HFM-I-50-35	50	35	15kW-2	2900	370
60		80HFM-I-50-40	50	40	15kW-2	2900	370
61		80HFM-I-50-45	50	45	18.5kW-2	2900	400
62		80HFM-I-50-50	50	50	22kW-2	2900	440
63	80HFM-I-H	80HFM-I-H-15-15	15	15	2.2kW-4	1450	280	80×65
64		80HFM-I-H-15-17.5	15	17.5	3kW-4	1450	250
65		80HFM-I-H-25-80	25	80	22kW-2	2900	440
66		80HFM-I-H-30-60	30	60	18.5kW-2	2900	400
67		80HFM-I-H-30-70	30	70	22kW-2	2900	440
68		80HFM-I-H-40-60	40	60	22kW-2	2900	440
69	80HFM-I-H2	80HFM-I-H2-40-70	40	70	30kW-2	2900	470	80×65
70		80HFM-I-H2-40-75	40	75	30kW-2	2900	470
71		80HFM-I-H2-45-73	45	73	30kW-2	2900	470
72		80HFM-I-H2-50-60	50	60	30kW-2	2900	470
73		80HFM-I-H2-50-70	50	70	30kW-2	2900	470
74		80HFM-I-H2-60-70	60	70	37kW-2	2900	490
75	100HFM-I	100HFM-I-25-15	25	15	3kW-4	1450	330	100×80
76		100HFM-I-25-17.5	25	17.5	4kW-4	1450	340
77		100HFM-I-50-15	50	15	5.5kW-4	1450	350
78		100HFM-I-50-17.5	50	17.5	7.5kW-4	1450	360
79		100HFM-I-50-35	50	35	15kW-2	2900	420
80		100HFM-I-50-40	50	40	18.5kW-2	2900	440
81		100HFM-I-50-50	50	50	22kW-2	2900	480
82		100HFM-I-60-35	60	35	15kW-2	2900	420
83		100HFM-I-60-40	60	40	18.5kW-2	2900	440
84		100HFM-I-60-45	60	45	22kW-2	2900	480
85		100HFM-I-60-50	60	50	22kW-2	2900	480
86		100HFM-I-80-35	80	35	18.5kW-2	2900	440
87		100HFM-I-80-40	80	40	22kW-2	2900	480
88		100HFM-I-100-35	100	35	22kW-2	2900	480
89	100HFM-I-H	100HFM-I-H-30-15	30	15	4kW-4	1450	340	100×80
90		100HFM-I-H-30-17.5	30	17.5	4kW-4	1450	340
91		100HFM-I-H-40-15	40	15	5.5kW-4	1450	340
92		100HFM-I-H-40-17.5	40	17.5	5.5kW-4	1450	340
93		100HFM-I-H-40-80	40	80	30kW-2	2900	560
94		100HFM-I-H-50-60	50	60	30kW-2	2900	560
95		100HFM-I-H-50-70	50	70	30kW-2	2900	560
96		100HFM-I-H-60-60	60	60	30kW-2	2900	560
97		100HFM-I-H-60-70	60	70	37kW-2	2900	580
98		100HFM-I-H-80-50	80	50	30kW-2	2900	560
99		100HFM-I-H-80-60	80	60	37kW-2	2900	580
100		100HFM-I-H-100-40	100	40	30kW-2	2900	560
101		100HFM-I-H-100-50	100	50	37kW-2	2900	580
102	100HFM-I-H2	100HFM-I-H2-60-80	60	80	45kW-2	2900	450	100×80
103		100HFM-I-H2-80-70	80	70	45kW-2	2900	450
104		100HFM-I-H2-100-60	100	60	45kW-2	2900	450
105		100HFM-I-H2-120-60	120	60	55kW-2	2900	450
106	100HFM-I-M	100HFM-I-M-60-75	60	75	30kW-4	1450	950	100×80
107		100HFM-I-M-60-85	60	85	37kW-4	1450	950
108		100HFM-I-M-80-72	80	72	37kW-4	1450	950
109		100HFM-I-M-80-85	80	85	45kW-4	1450	950
110		100HFM-I-M-100-70	100	70	45kW-4	1450	950
111		100HFM-I-M-100-80	100	80	55kW-4	1450	950
112		100HFM-I-M-120-68	120	68	55kW-4	1450	950
113		100HFM-I-M-120-75	120	75	75kW-4	1450	950
114	125HFM-I-H	125HFM-I-H-100-45	100	45	37kW-2	2900	480	125×100
115		125HFM-I-H-100-75	100	75	55kW-2	2900	400
116		125HFM-I-H-130-70	130	70	55kW-2	2900	400
117		125HFM-I-H-150-40	150	40	45kW-2	2900	380
119	125HFM-I-H2	125HFM-I-H2-100-65	100	65	45kW-2	2900	600	125×100
120		125HFM-I-H2-130-60	130	60	55kW-2	2900	600
121		125HFM-I-H2-150-55	150	55	55kW-2	2900	600
122	125HFM-I-M	125HFM-I-M-80-70	80	70	37kW-4	1450	950	125×100
123		125HFM-I-M-80-85	80	85	45kW-4	1450	950
124		125HFM-I-M-100-70	100	70	45kW-4	1450	950
125		125HFM-I-M-100-85	100	85	55kW-4	1450	950
126		125HFM-I-M-120-70	120	70	55kW-4	1450	950
127		125HFM-I-M-120-85	120	85	75kW-4	1450	950
128		125HFM-I-M-130-68	130	68	55kW-4	1450	950
129		125HFM-I-M-140-65	140	65	75kW-4	1450	950
130		125HFM-I-M-150-62	150	62	75kW-4	1450	950
131	150HFM-I	150HFM-I-80-11	80	11	11kW-6	980	950	150×125
132		150HFM-I-101-18	101	18	15kW-6	980	950
133		150HFM-I-120-40	120	40	37kW-4	1450	950
134		150HFM-I-148-11	148	11	15kW-6	980	950
135		150HFM-I-150-40	150	40	45kW-4	1450	950
136		150HFM-I-200-32	200	32	45kW-4	1450	950
137		150HFM-I-250-30	250	30	45kW-4	1450	950
138		150HFM-I-300-25	300	25	45kW-4	1450	950
139	150HFM-I-M	150HFM-I-M-100-90	100	90	75kW-4	1450	1100	150×125
140		150HFM-I-M-120-85	120	85	75kW-4	1450	1100
141		150HFM-I-M-150-70	150	70	75kW-4	1450	1100
142		150HFM-I-M-150-85	150	85	90kW-4	1450	1100
143		150HFM-I-M-180-68	180	68	90kW-4	1450	1100
144		150HFM-I-M-180-80	180	80	90kW-4	1450	1100
145		150HFM-I-M-200-66	200	66	90kW-4	1450	1100
146		150HFM-I-M-200-72	200	72	110kW-4	1450	1100
147		150HFM-I-M-200-75	200	75	110kW-4	1450	1100
148	200HFM-I	200HFM-I-168-20	168	20	30kW-6	980	1100	200×150
149		200HFM-I-210-14	210	14	18.5kW-6	980	1100
150		200HFM-I-215-10	215	10	18.5kW-6	980	1100
151		200HFM-I-250-45	250	45	75kW-4	1450	1100
152		200HFM-I-300-38	300	38	75kW-4	1450	1100
153		200HFM-I-320-24	320	24	45kW-4	1450	1100
154		200HFM-I-320-32	320	32	55kW-4	1450	1100
155		200HFM-I-350-20	350	20	45kW-4	1450	1100
156		200HFM-I-350-28	350	28	55kW-4	1450	1100
157		200HFM-I-350-34	350	34	75kW-4	1450	1100
158		200HFM-I-400-18	400	18	45kW-4	1450	1100
159		200HFM-I-400-25	400	25	75kW-4	1450	1100
160		200HFM-I-500-12	500	12	45kW-4	1450	1100
161	200HFM-I-M	200HFM-I-M-120-85	120	85	75kW-4	1450	1800	200×150
162		200HFM-I-M-150-75	150	75	75kW-4	1450	1800
163		200HFM-I-M-150-83	150	83	90kW-4	1450	1800
164		200HFM-I-M-180-73	180	73	90kW-4	1450	1800
165		200HFM-I-M-200-70	200	70	90kW-4	1450	1800
166		200HFM-I-M-200-80	200	80	110kW-4	1450	1800
167		200HFM-I-M-250-67	250	67	110kW-4	1450	1800
168		200HFM-I-M-250-75	250	75	132kW-4	1450	1800
169	200HFM-I-AH	200HFM-I-AH-200-75	200	75	110kW-4	1450	2000	200×150
170		200HFM-I-AH-200-80	200	80	110kW-4	1450	2000
171		200HFM-I-AH-250-72	250	72	132kW-4	1450	2000
172		200HFM-I-AH-250-76	250	76	132kW-4	1450	2000
173		200HFM-I-AH-300-70	300	70	132kW-4	1450	2000
174		200HFM-I-AH-350-60	350	60	132kW-4	1450	2000
175		200HFM-I-AH-350-68	350	68	132kW-4	1450	2000
176	250HFM-I	250HFM-I-300-65	300	65	132kW-4	1450	2200	250×200
177		250HFM-I-350-63	350	63	132kW-4	1450	2200
178		250HFM-I-400-55	400	55	132kW-4	1450	2200
179		250HFM-I-400-63	400	63	160kW-4	1450	2200
180		250HFM-I-500-52	500	52	160kW-4	1450	2200
181		250HFM-I-500-60	500	60	185kW-4	1450	2200
182		250HFM-I-600-49	600	49	185kW-4	1450	2200
183		250HFM-I-600-56	600	56	200kW-4	1450	2200
184		250HFM-I-700-45	700	45	185kW-4	1450	2200
185		250HFM-I-700-52	700	52	200kW-4	1450	2200
186		250HFM-I-800-42	800	42	200kW-4	1450	2200
187		250HFM-I-800-48	800	48	220kW-4	1450	2200

注：泵差异化代号中的H、H2、AH为高扬程泵，M为慢转速泵；
　　有差异化的泵与常规泵零部件不通用，具体请与我公司确认；
　　表中配备电机功率是在密度ρ=1时的参考值，实际电机功率应大于轴功率×介质密度ρ。
